RocketPort® EXPRESS 4J

The RocketPort EXPRESS 4J multiport serial card has RJ45 serial ports and is RS-232, RS-422, and RS-485 software-selectable.

Part Number: 31305-2

Datasheet

Engineering Drawing

Device Drivers and Utilities

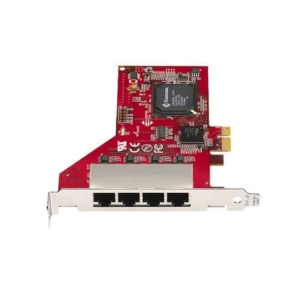

The RocketPort EXPRESS 4J serial port expansion card provides four “native” serial ports utilizing a single PCIe card slot and is compatible with all PCI Express bus architectures. The RJ45 serial ports, mounted on the edge of the card, support software configurable RS-232/422/485 serial communications at speeds up to 921.6 Kbps.

Every RocketPort serial card features the high-performance RocketPort processor chip, consisting of a dedicated 44 MHz core that minimizes host CPU utilization and optimizes data transmission via larger transmitand- receive buffers than those of 16550 UART chips, commonly used in standard PC serial ports and low-end serial cards.

RocketPort technology enables these cards to outperform other serial expansion cards by handling the transmission of large amounts of data more reliably and efficiently.

Certified Windows drivers, support for the most popular operating systems, and readily available U.S.-based support makes the RocketPort 4J the perfect solution for projects requiring PC-based serial communication.
